Tcxh-a digester series

The tcxh-a digester is composed of A two-stage split digester. The first level is a type of the lime slaker, structure for the stirring shaft, transmission part adopts the control motor, material into the first level after the digesters, the nozzle jet of water under the effect of stirring blades to digest of mixed, then through discharging mouth discharge into the secondary digesters. The second stage is the maturation machine, and the lime and water are further reacted in this section to generate calcium hydroxide. This level is a single mixing shaft, and a high efficiency dust collector is installed above the top cover plate. The types of digesters reasonable structure, flexible arrangement, product quality is reliable, the equipment investment is not high, suitable for annual production capacity of 35000 tons - 70000 tons scale enterprise use, especially suitable for the use of old factory building reconstruction process arrangement.

Parameters 参数 型号 Model		生产能力 Capacity	净重（kg） Net weight	电机功率 Motor power （kw）	外形尺寸 Outline dimension 长L×宽W×高H	进料口尺寸 Inlet size （mm）	出料口尺寸 Outlet size （mm）
TCXH-A-5	一级	5 T/H	9700	15	4970×1920×1580	260×260	200×450
	二级		11800	18.5	5320×2230×2470	200×800	350×680
TCXH-A-10	一级	10 T/H	11500	22	4990×2230×2020	400×400	360×530
	二级		18300	30	7460×2890×3260	390×600	400×600

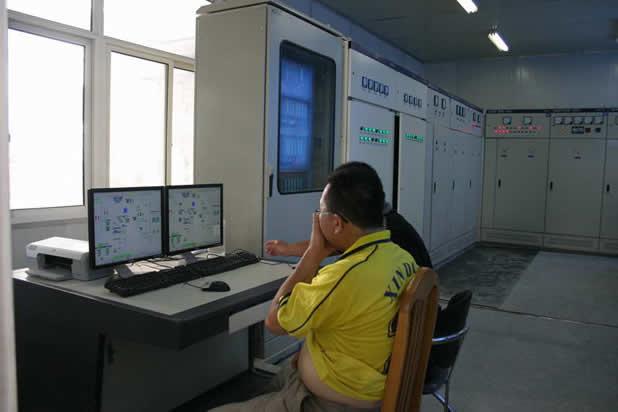

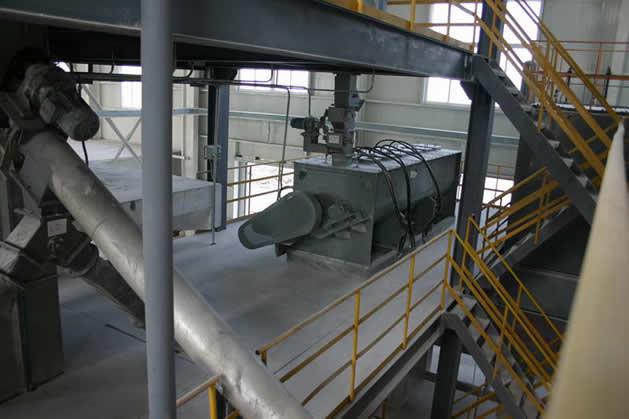

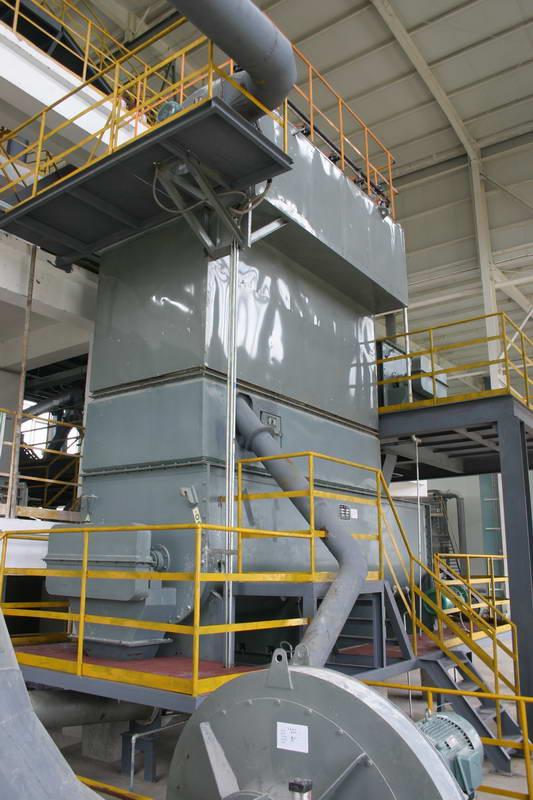

Lianyungang Project	Lianyungang Project
Lianyungang Project	Lianyungang Project
